BSOUNDLH
FYRA line acoustic alarm with light indicator
BSOUNDLH
Warning devices
BSOUNDLH

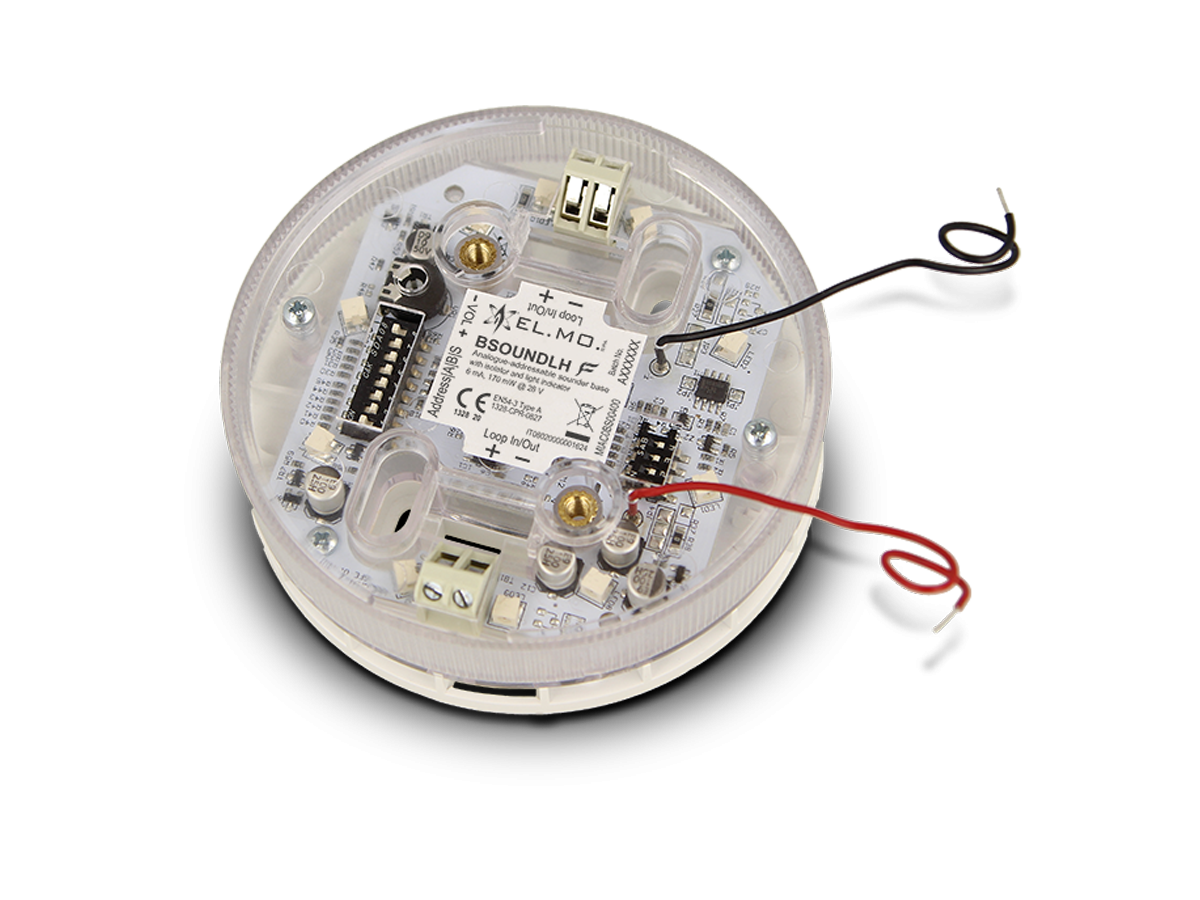

FYRA line acoustic alarm with light indicator on EN 54-3 detector base. Transparent cover included. BSOUNDLH is a white indoor sounder with light indicator on a detector base. It is connected directly to a FYRA addressable analog loop, without the need for an output control module. BSOUNDLH has an integrated line isolator. It can operate in stand-alone mode (with the transparent cover supplied) or as a base for FYRA series addressable analog sensors. It is equipped with selectors for adjusting the address and for choosing between the different preset tones. The sounder is CPR 305/2011 EN 54-3 certified.
Features
| Installation | Indoor |
| Interface | Conventional |
| Product type | Sounder base |
Technical details
| Versions | Default MIAC0BS00600 -MIAC0BS00400 |
| Tones | 2 |
| Sound pressure at 1 m at 30 V | 97 dB |
| Signals | Acoustic and optical |
| Protection class | IP21C |
| Dimensions | Ø 100 × H 38 mm |
| Weight | 144 g |
| Operating temperatures | −10 ÷ +55 °C |
| Power supply current consumption | 430 μA in idle ; 6.6 mA in alarm |
| Power supply | 20 ÷ 30 Vdc (from loop) |
| Certifications | CPR 305/2011 EN 54‑3, EN 54‑13 |
| Equipment | Transparent lid included |
Technical documentation
Available Documents
Click here of documentation you want to download :
Models : MIAC0BS00400
User Manual
Version: v.8.3.2
Manuale Utente
Version: v.8.3.2
Benutzerhandbuch
Version: v.8.3.2
Manuel d’utilisation
Version: v.8.3.2
Manual de usuario
Version: v.8.3.2
