New hassle-free smart control panel for your home The akubela HyPanel, a smart control panel with an Android 10 operating system. The ALL IN ONE design integrates smart intercom, ZigBee gateway and home automation, and is compatible with plentiful ecosystems. Multi-modal interaction can be easily used by the whole family, offering the excellent smart home experience.
Model Number: PS51-KNX-EU
KNX Power Supply: 21 ~ 30VDC
Rated Current: 12mA/21V
AUX Power Supply: 21 ~ 30VDC
Rated Current: 210mA/24V, 170mA/30V
Maximum Power Consumption: 5W
Digital Input: 1 gang 0- 5VDC
Dry Contact Output: 2 gang, 100 ~ 240VAC;
Rated Current: 4A;
Wire Range: 0.75 ~ 1.6mm² (18 ~ 15AWG)
Operation System: Android 10
RAM/ROM: 1GB/8GB
Wi-Fi: IEEE802.11 b/g/n, @2.4GHz/5GHz
Bluetooth: Bluetooth 4.2
Ethernet Port: 1×RJ45, 10/100Mbps adaptive
ZigBee: ZigBee 3.0
ZigBee Sub-Device Limit: 128
Microphone: Dual microphones,-42dBV
Speaker: Single speaker, 8Ω/1.5W
Appearance
Material: V0 fireproof PC

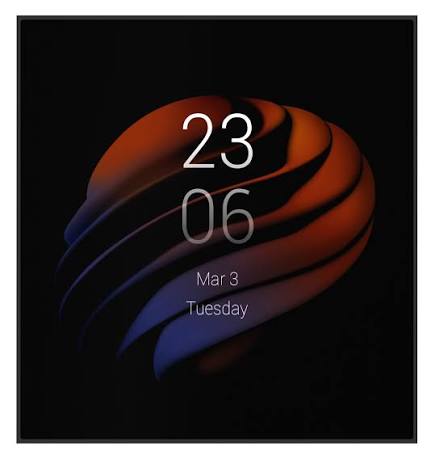

Screen: 4” multi-touch screen
Screen Resolution: 480×480 pixels
Screen Brightness: 210 cd/㎡
