Akubela RT61-KNX-EU
Control Panel
Control Panel

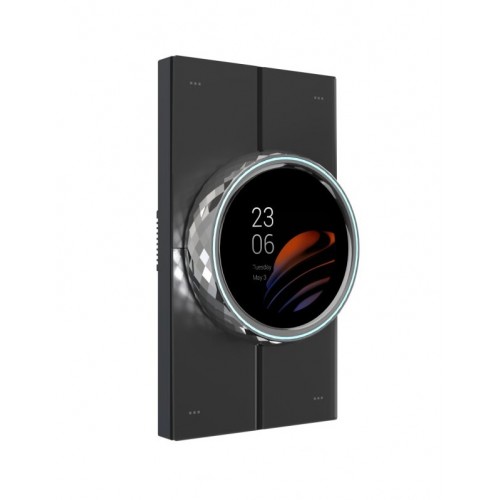

Akubela RT61-KNX-EU
The akubela HyPanel Lux, a smart home control panel with an Android 10 operating system. The ALL IN ONE design integrates smart intercom, ZigBee gateway, infrared remote control and home automation, and is compatible with plentiful ecosystem. The copper knob wrapping a circular display with a more than 16 million colors RGB light-strip ring, together with 4 AG glass buttons brings a multi-mode interaction, can be easily used by the whole family, offering the excellent smart home experience.
At a Glance
2.1-inch touch screen with 4 AG-glass physical buttons
Infinite metal knobs with damping and ratchet mode
Light ring with more than 16 million colors
Kinds of sensors and Infrared remote control built-in
Support horizontal and vertical installation adaptive
Android 10 system in High-powered Qualcomm chip
Smartintercom, ZigBee gateway, home automation ALL IN ONE
Built in with a 2-gang switch and a digital input port
Basic Information
Model Number: RT61-KNX-EU
Power Supply: KNX 21~30VDC
AUX 21~30VDC
Rated Current: 1.3A
Rated Power: 15W
I/O Port: 0~5VDC Digital input x1
100~240VAC relay x2
Operation System: Android 10
RAM/ROM: 1GB/8GB
Wi-Fi: IEEE802.11 b/g/n, @2.4GHz/5GHz
Bluetooth: Bluetooth 4.2
Ethernet Port: 1×RJ45, 10/100Mbps adaptive
ZigBee: ZigBee 3.0
Infrared Remote Control: Support
Microphone: Dual microphones,-42dBV
Speaker: Dual speakers, 8Ω/1.5W
Appearance
Material: V0 fireproof PC+4 AG glass buttons+
1 metal knob
Screen: 2.1’’ multi-touch screen
Screen Resolution: 480×480 pixels
Screen Brightness: 210 cd/㎡
