SNI01A
Addressable Smoke Detector
FYRA Low Profile Analogue
SNI01A

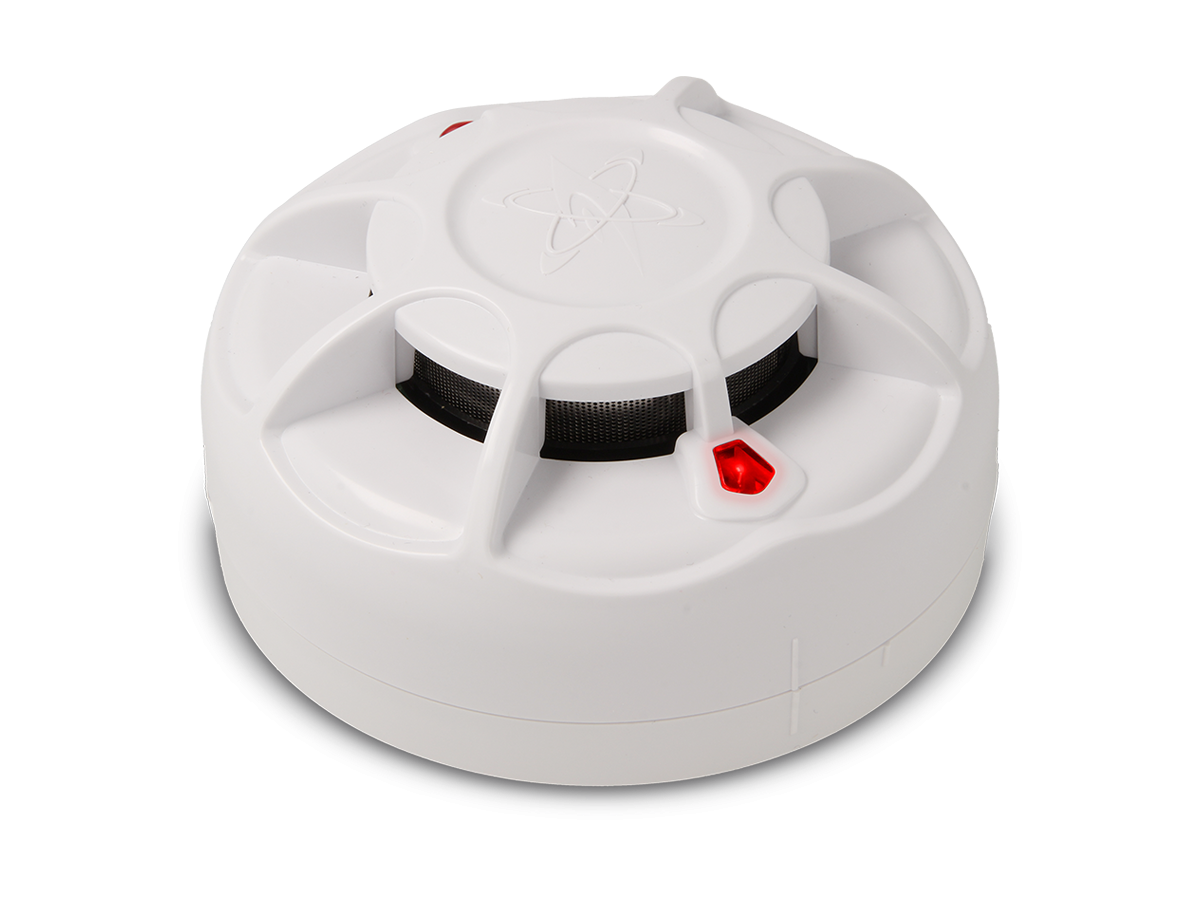

FYRA Low Profile Analogue Addressable Smoke Detector
The SNI01A is a low-profile FYRA addressable analog smoke detector with a built-in isolator that can be used in fire detection systems controlled by EL.MO. control panels equipped with FYRA-branded modules or loop cards. It features a built-in isolator and an output for connecting a remote LED and can be programmed using the PGTFYRA programmer.
Features
| Loop | Fyra |
| Revelation | Smoke |
| Interface | Analog-addressable |
Technical details
| Versions | Default RIRFY0100100 |
| Reports | 2 360° visible LEDs and remote display LED output |
| Alarm indicator | 2 red LEDs with steady light |
| Alarm threshold | Smoke 0.08÷0.13 dB/m |
| Operating temperatures | −10 – 50 °C |
| Degree of protection | IP 43 |
| Dimensions | H49 × Ø100 mm |
| Weight | 145 g |
| Power supply voltage absorption | At rest 0.3 mA |
| In alarm 1.8 mA | |
| Power supply | From 17 to 28 Vdc |
| CPR Number | 2831‑CPR‑F4786 |
| Note | Requires PGTFYRA programmer for addressing |
Technical documentation
Available Documents
Click here of documentation you want to download :
Models : RIRFY0100100 / RIRFY0200100 / RIRFY0300100
User Manual
Version: v.1
Manuale Utente
Version: v.1
Benutzerhandbuch
Version: v.1
Manuel d’utilisation
Version: v.1
Manual de usuario
Version: v.1
