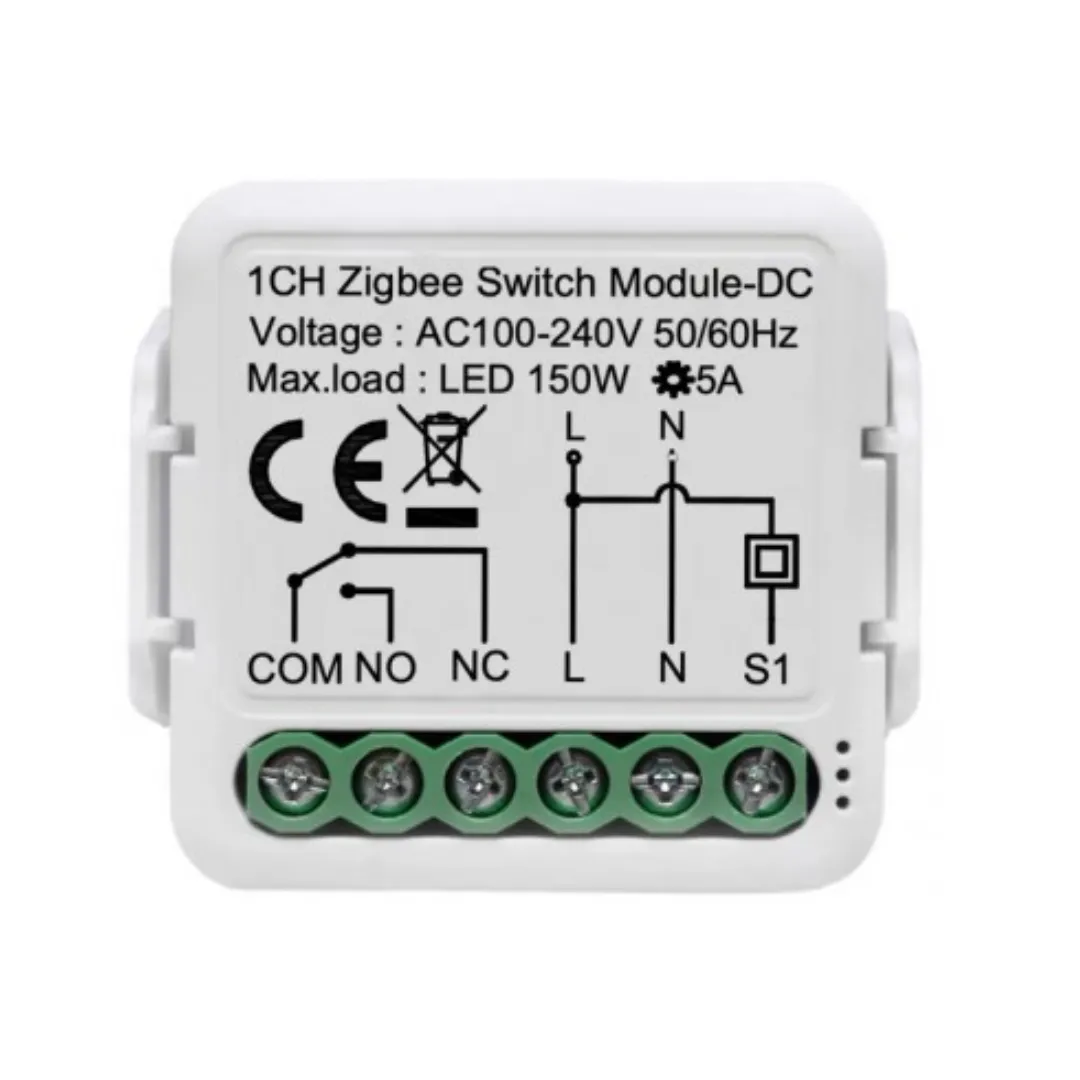

Akubela TYSH-1CH
Contact Switch
Contact Switch
Akubela Contact Switch
This dry contact switch, with its compact design and excellent control capabilities, adds infinite possibilities to your smart home system. Its small size allows for easy integration into various spaces, offering flexible dry contact control for seamless device interconnection and a smarter, more convenient living environment.
Features
Compactsize for easy installation and concealment
Provides dry contact control output
Universal voltage compatibility for broad applications
Supports Belahome APP and HyPanel control
Specification
Product model: TYSH-1CH
Input voltage: 100 ~ 240VAC, 50/60Hz
Communication method: ZigBee 3.0
Load limit: Max 150W (inductive load)
Max 5A (resistive load)
Wiring Diagram
Working temperature:-10 ~ 40°C
Working humidity: 0 ~ 95% RH
(non-condensing)
Product dimensions: 43×39.2×22.3mm
Protection level: IP20
1 Gang Dry Contact Switch (ZigBee)
Networking method
1. Connect the power cord correctly according to the wiring diagram to power the device;
2. Press and hold the reset button for about 10 seconds, the device indicator will flash quickly,
indicating that it has entered the network pairing mode;
3. Add to the network through the gateway device.
