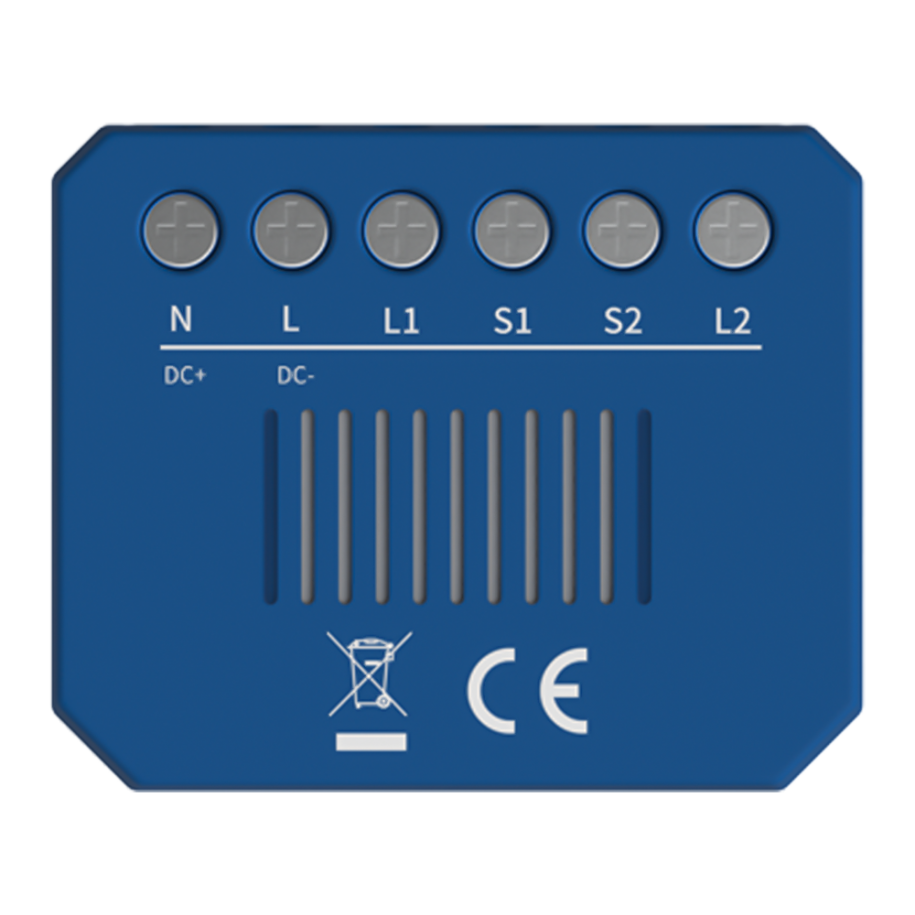

Akubela ZBMD-C1-R2
Switch Module
Switch Module
Akubela ZBMD-C1-R2
Premium Add-on device for your home This 2-gang Switch Module fits inside the wall switch box and connects to the gateway via the ZigBee protocol, enabling remote control and smart home integration. It is one of the key products for smart retrofit solutions.
Features
Standard ZigBee protocol for broad device compatibility
Wide voltage range
Small size suitable for various installation boxes
Supports control of various types of switches
Remote control via app or panels
Power-off memory and real-time control
10A max power capacity
Specification
Product Model: ZBMD-C1-R2
Input Voltage: 100 ~ 250VAC, 50/60Hz
24V-30 VDC
Communication Method: ZigBee 3.0
Load Limit: 2x10A/ 250VAC
2x10A/ 30VDC
Wiring Diagram
Working Temperature: -10℃~40℃
Storage Temperature: -20℃~70℃
Working Humidity: 10 ~ 90 % RH
（non-condensing）
Product Size: 50*41*15.7mm
Networking
1. Connect the device according to the wiring diagram and power it on. The blue indicator will flash
slowly (once per second);
2. Press and hold the reset button for about 5 seconds until the blue indicator flashes rapidly.
indicating that the device is in pairing mode;
3. Add the device to the network through the gateway. Once connected, the blue indicator will stay
on.
